Reverse Engineering

Reverse Engineering CAD Services:-



• Reverse engineering CAD (Computer-Aided Design) services involve recreating digital 3D models from physical objects. This process is used to analyze, modify, or improve existing designs without original design data.

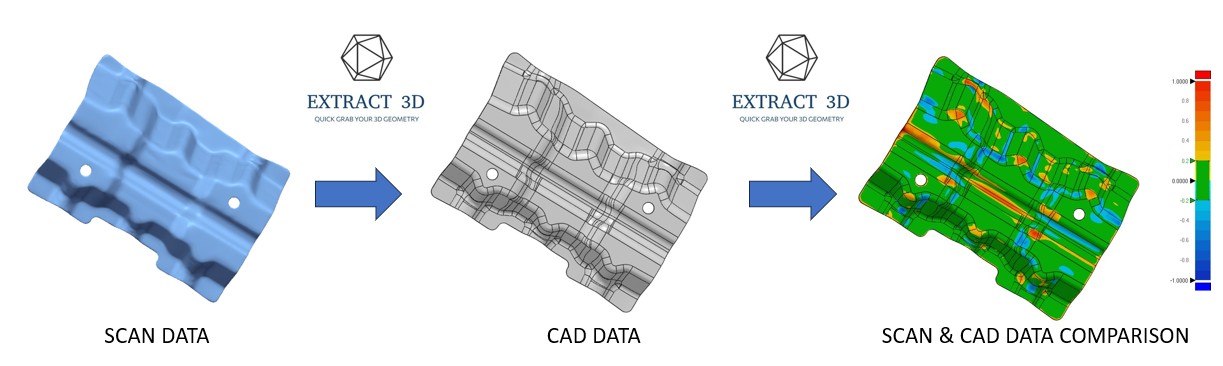

• Scanning & Data Collection – 3D scanners capture an object’s geometry and generate point cloud data.
• Mesh to CAD Conversion – The scanned data is converted into accurate 3D CAD models using software like SolidWorks or AutoCAD.
• Application Areas – Used in aerospace, automotive, medical, and industrial manufacturing for product development and improvement.
• Benefits – Enables redesign, optimization, and reproduction of parts that may lack existing documentation.
• Quality Inspection – Helps in comparing the scanned part with original CAD models for defect analysis.
